10/100/1000BASE-T SFP Ethernet Network Switch S5731S-H48T4XC-A

Description : S5731S-H48T4XC-A

Stock : In Stock

MOQ : 1 pieces

Price : Contact us

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Shipping Method : Express, AIR, LCL, AIR, FCL, Express

Type : network switch

Ports : 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+

Switching capacity : 336 Gbps/672 Gbps

Forwarding Performance : 125 Mpps

AC power supply : 65*55*175cm

Weight : 9.5 kg

Place of Origin : Beijing, China

Packaging Details : Original packaging box+Based on customer needs

Delivery Time : 2-7 working days

Supply Ability : /pieces >=1 pieces

Contact Now

S5731-H48T4XC-AC overview

This Huawei switch comes with 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, is one of the Huawei S5731-H series switches.

The S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei.

The CloudEngine S5731-H builds on Huawei's unified Versatile Routing Platform (VRP) and boasts various IDN features.

For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization, and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception.

S5731-H48T4XC-AC quick Spec

48 10/100/1000BASE-T ports, 4 10GE SFP+ ports

Forwarding Performance is 125 Mpps

Switching capacity is 336 Gbps/672 Gbps

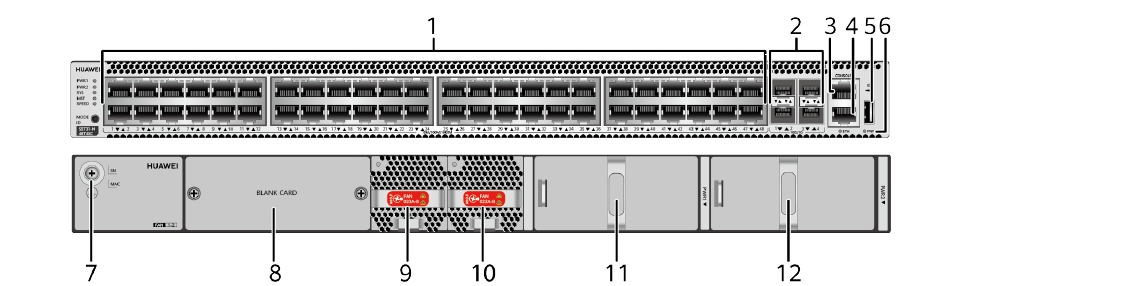

S5731-H48T4XC-AC appearance and structure

10/100/1000BASE-T SFP Ethernet Network Switch S5731S-H48T4XC-A

1	Forty-eight PoE+ 10/100/1000BASE-T ports SFP-1000Base-T	7	Ground screw
2	Four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR	8	Rear card slot
3	One console port	9	Fan module slot 1
4	One ETH management port	10	Fan module slot 2
5	One USB port	11	Power module slot 1
6	One PNP button	12	Power module slot 2

S5731S-H48T4XC-A Specification

S5731S-H48T4XC-A Specification
Memory (RAM)	4 GB
Flash	1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	55.31 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	• Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode • Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	• Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging)	9.5 kg (20.94 lb)
Stack ports	10GE SFP+ ports on the front panel, or ports on the rear card
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	• AC input: 100 V AC to 240 V AC, 50/60 Hz • High-Voltage DC input: 240 V DC • DC input: -48 V DC to -60 V DC
Maximum voltage range	• AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-Voltage DC input: 190 V DC to 290 V DC • DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	124 W (without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	101 W (without card)
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 57.5 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	• EMC certification • Safety certification • Manufacturing certification
Part number	02352YRF

Table 2 shows the recommended products.

Model	Description
PAC600S12-CB	600W AC Power Module(Back to Front, Power panel side exhaust)
ES5D21Q02Q00	2-port 40GE QSFP+ interface card
ES5D21X08T00	8-port 10GE Base-T interface card
eSFP-GE-SX-MM850	Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)
SFP-GE-LX-SM1310	Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)
SFP-GE-ZBXU1	Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC)
LE2MGSC40DE0	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)
LE2MGSC40ED0	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)
SFP-GE-LX-SM1310-BIDI	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)
SFP-10G-iLR	Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC)
CWDM-SFPGE-1611	CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1611nm,80km,LC)
SFP-10G-USR	10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)
OMXD30000	Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
OSX010000	Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

Table 3 shows the comparison.

Product Code	S5731S-H24T4XC-A	S5731S-H48T4XC-A
Memory (RAM)	4 GB	4 GB
Flash	1 GB in total. To view the available flash memory size, run the display version command.	1 GB in total. To view the available flash memory size, run thedisplay versioncommand.
Mean time between failures (MTBF)	57.73 years	55.31 years
Mean time to repair (MTTR)	2 hours	2 hours
Availability	> 0.99999	> 0.99999
Service port surge protection	Common mode: 6 kV	Common mode: 6 kV
Stack ports	10GE SFP+ ports on the front panel, or ports on the rear card	10GE SFP+ ports on the front panel, or ports on the rear card
RTC	Supported	Supported
RPS	Not supported	Not supported
PoE	Not supported	Not supported
Maximum power consumption (100% throughput, full speed of fans)	114 W (without card)	124 W (without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	88 W (without card)	101 W (without card)
